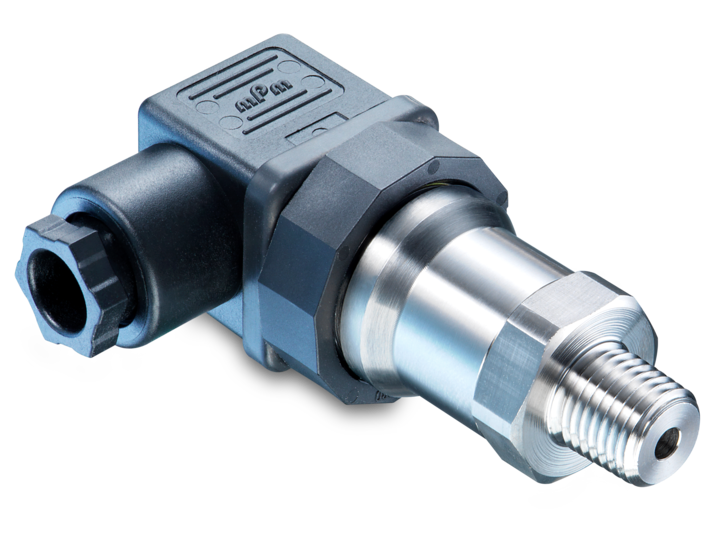

Economic Series Pressure Transmitter
Baumer Pressure Transducers
Pressure sensor for general air and gas applications - stainless steel
- Relative pressure measurement from -1 to 200 bar
- Robust ceramic measuring cell
- Stainless steel housing
- Compact design
- Relative pressure and vacuum measurement
Main Features
- OEM applications
- Excellent price/performance ratio
- Stainless Steel or brass construction
- Compact design
Applications
- Pneumatic
- HVAC
- Factory automation
- Energy
- Agriculture vehicles
Measuring ranges and over pressure safety
| Pressure range (bar) | -1 ... 0 0 ... 1 |
-1 ... 1.5 0 ... 2.5 |
-1 ... 3 0 ... 4 |
-1 ... 5 0 ... 6 |
-1 ... 9 0 ... 10 |
-1 ... 15 0 ... 16 |
-1 ... 24 0 ... 25 |
1 ... 39 0 ... 40 |
0 ... 60 | 0 ... 100 | 0 ... 160 | 0 ... 200 | ||||||||||||
| Over pressure (bar) | 2 | 4 | 8 | 12 | 20 | 32 | 50 | 80 | 120 | 200 | 320 | 360 | ||||||||||||
| Burst pressure (bar) | 3 | 7 | 12 | 18 | 30 | 48 | 75 | 120 | 180 | 300 | 480 | 480 | ||||||||||||
Technical Specifications
| Attribute | Value |
|---|---|
| Measuring Range | -1 … 200 bar |
| Min. Measuring Span | 1.0 bar |
| Max. Measuring Span | 200 bar |
| Pressure Type | Relative (gauged) |
| Standard Error of Measurement (BFSL) | ± 0.5 % FSR (Including non-linearity, hysteresis and non-repeatability according BFSL) |
| Max. Measuring Error | ± 2.5 % FSR (Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)) |
| Temperature Coefficient | ≤ 0.15 % FSR/10 K (Measuring span) ≤ 0.25 % FSR/10 K (Zero point) |
| Compensated Temperature Range | -10 … 55 °C |
| Long Term Stability | ≤ 0.3 % FSR/a |
| Rise Time (10 ... 90 %) | ≤ 5 ms |
