Flow Switches
Flow Switches

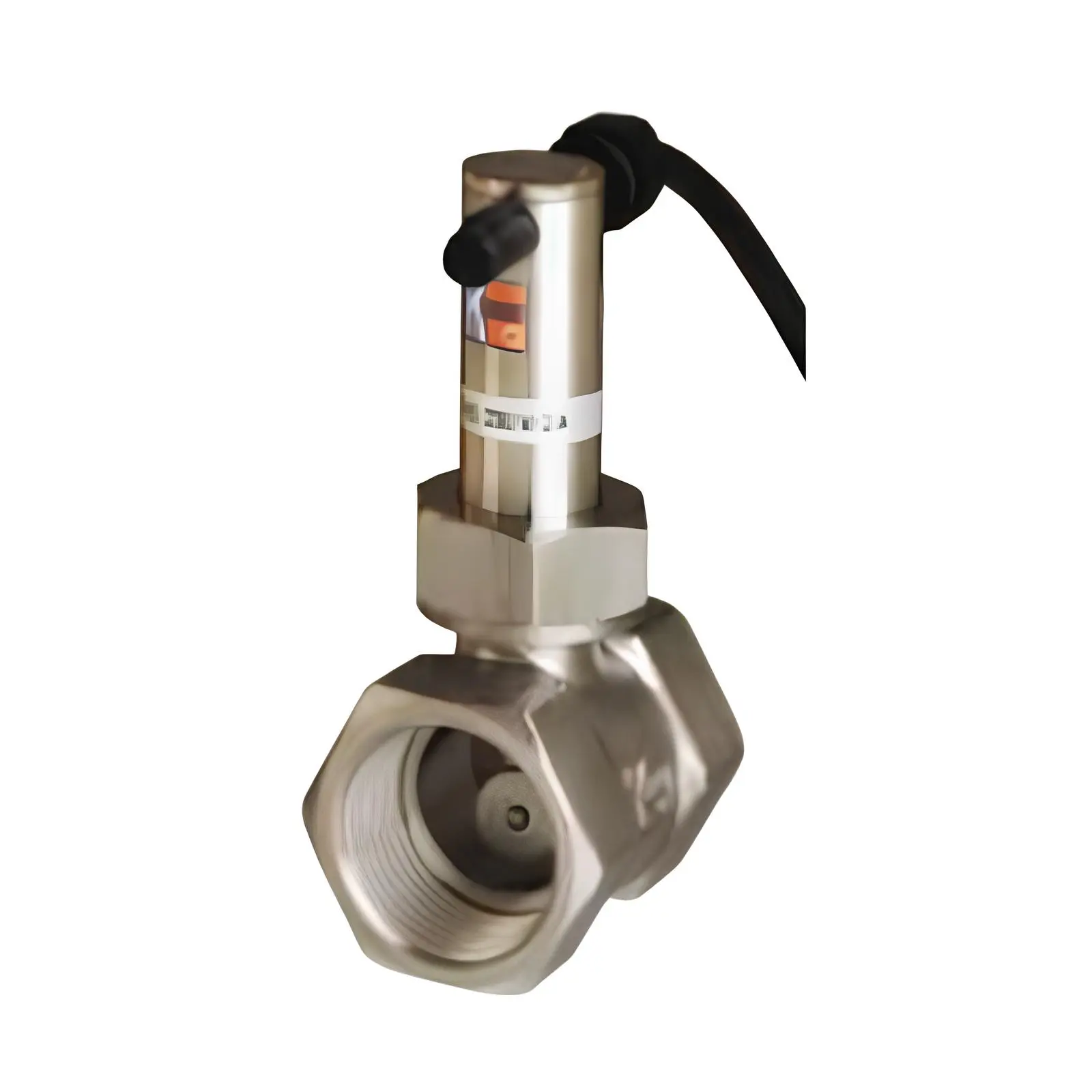

RB Automations' Flow Switch, a high-performance solution for fluid flow control. With precision engineering and reliability at its core, It ensures accurate and responsive flow regulation for diverse industrial needs.
Principle of Measurement
Depending on the flow velocity/flow throughput, the baffle plate is deflected and it moves over the balance arm the permanent magnet into the operating range of the reed contact mounted outside the process fluid.
Where to use
- Monitoring of cooling circuits
- Spray jet monitoring in cleaning machine
- Dry run protection of pump
Area of Application
- For water & coolant without OIL.
Technical Specifications
|
Switching range |
2.5 - 4.8 ….. 383-533 L/min water |
|
|
Temperature range |
100° C |
|
|
MOC |
Stainless Steel / Brass |
|
|
Signal Output |
Contact NO/NC |
|
|
Connection |
G1/4" ….G 1 1/2" |
|
|
Max. Pressure |
250 Bar |
|
