GTO Series

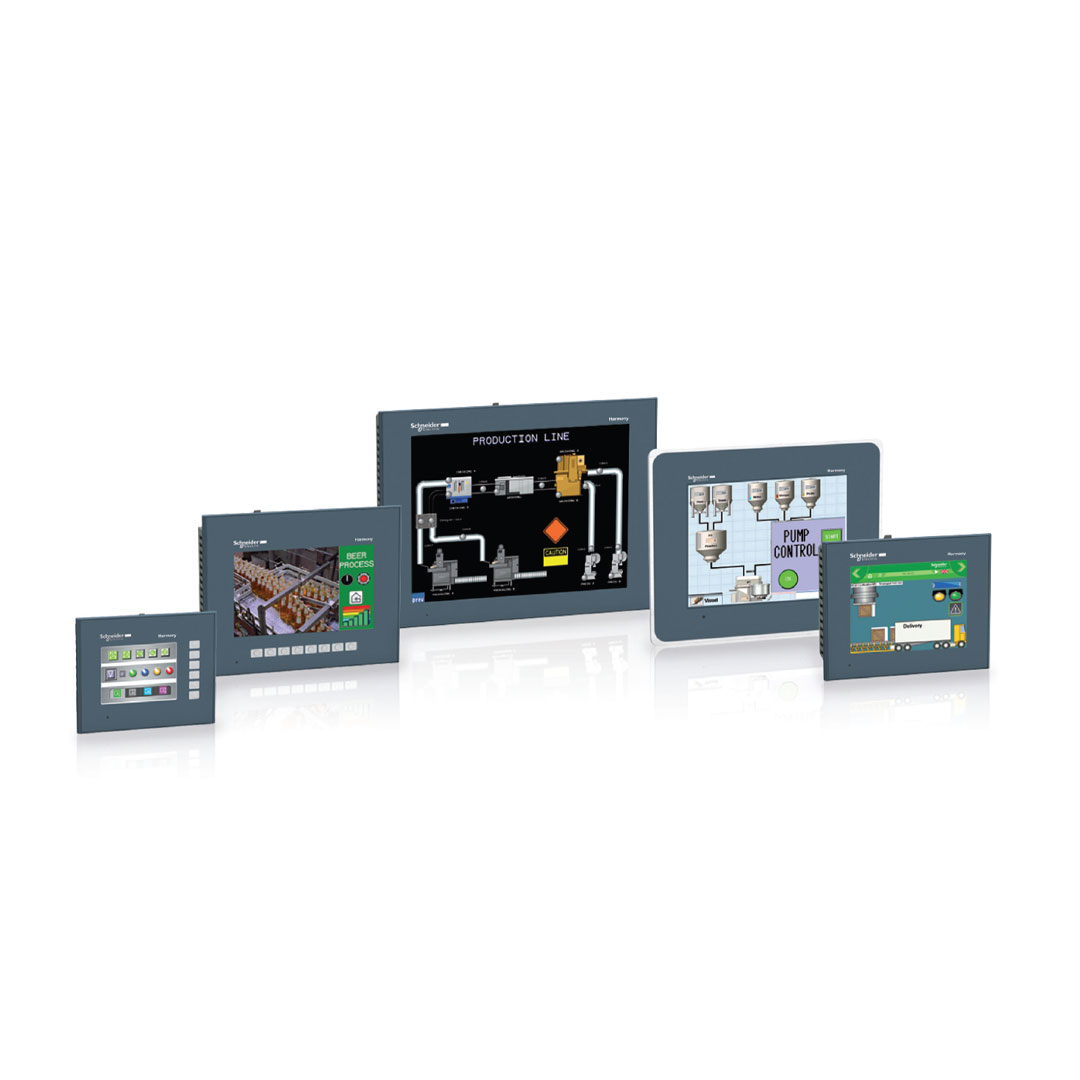

Introduction

Harmony GTO Standard HMI panels can be configured using Vijeo Designer software in a Windows 7, Windows 8.1 and Windows 10 Pro environment.
Vijeo Designer software boasts an advanced user interface with many configurable windows, enabling projects to be developed quickly and easily.
The Harmony GTO range is compatible with Vijeo Designer version V6.1 or later. For more information, please refer to Vijeo Designer catalog DIA5ED2130614EN.

Harmony GTO

Presentation

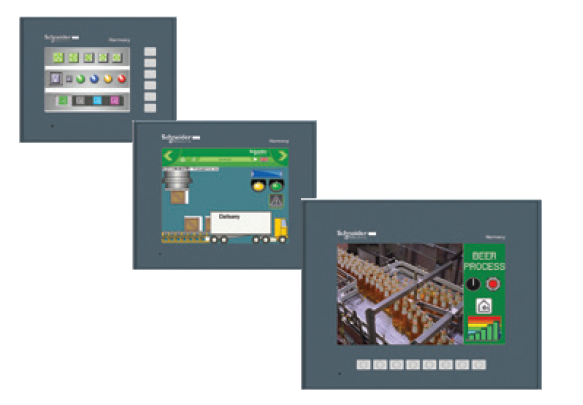

The Standard HMI touch screen panels Harmony GTO offer includes:

  • A range of 8 color touch screen panels (TFT technology), available in a choice of 5 sizes
  • 3.5"
  • 5.7"
  • 7": 7 Wide and 7.5" (front identical in size)
  • 10.4"
  • 12.1"
  • A range of 3 color TFT touch screens available in 3 sizes:
  • 5.7"
  • 10.4"
  • 12.1"
  • with front featuring a Stainless Steel frame, dedicated to applications in harsh environments (food & beverage and pharmaceutical).
Presentation GTO

Operation

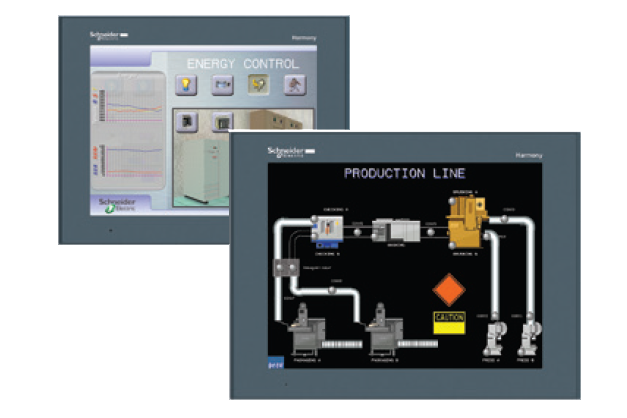

Harmony GTO Standard HMI panels feature optimized information and communication technologies, which, depending on the model, include:

  • High level of communication (embedded Ethernet, multilink, Web server and FTP, e-mail)
  • External storage of data (SD memory card and USB memory stick) for storing production data and backing up applications
  • Management of peripherals: printers, etc.
  • These panels offer an excellent level of technical performance designed principally for use by OEM customers.
Harmony GTO

Environment

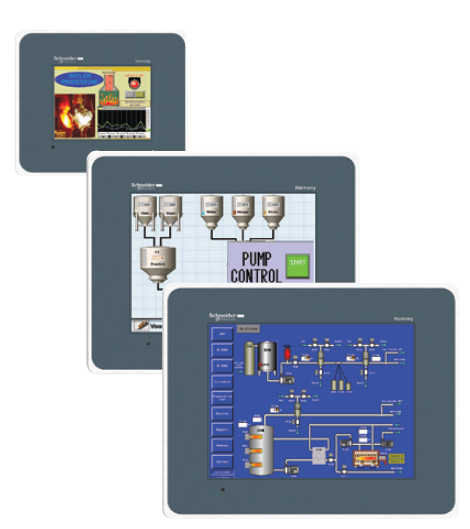

The Harmony GTO range has been designed in accordance with numerous standards, certifications and requirements:

  • Standards: EN 61131-2, 61000-6-2 and UL508.
  • Certifications:
  • e, C-tick, GOST-R, KCC
  • Atex and UL Hazardous location (pending)
  • Marine certifications (pending).
  • Operating temperature: up to 55°C
  • Degree of protection (according to IEC 60529):
  • IP 65 for standard version products
  • IP 67 for standard version products fitted with a cover for harsh environments
  • IP 66K for “Stainless Steel” version products
  • Resistance to high-pressure cleaning (conforming to DIN 40050-9): up to 10 bar for “Stainless Steel” version products.
Harmony GTO

Functions

Standard HMI panels offer the following functions:

  • Display of animated synoptic views with 8 types of animation (pressing the touch panel, color changes, filling, movement, rotation, size, visibility and value display)
  • Control, modification of numeric and alphanumeric values
  • Display of current date and time
  • Real-time and trending curves with log
  • Alarm display, alarm log and management of alarm groups
  • Multiwindow management
  • Operator-initiated page calls
  • Multilingual application management (10 languages at the same time)
  • Recipe management
  • Data processing via Java script
  • Storage of the application and logs on external application memory card in SD format or USB stick
  • Management of serial printer
