Level Switch

Magnetic Float Level Switch

Based on the new frequency sweep technology, Our level switches are suitable for high viscosity fluids as well as for solid or liquid materials

As they are unaffected by liquid turbulence, sedimentation or air bubbles, nor indeed by foam or suspended particles, they are suitable for even the most difficult applications. In comparison to other measurement methods, such as vibrating forks, conductive, ultrasonic or optical sensors, frequency sweep technology has some important benefits: no vibrating parts, no sensitivity to changes in conductivity, temperature or pressure. The level switches can be programmed on site and are well suited for separating fluids.

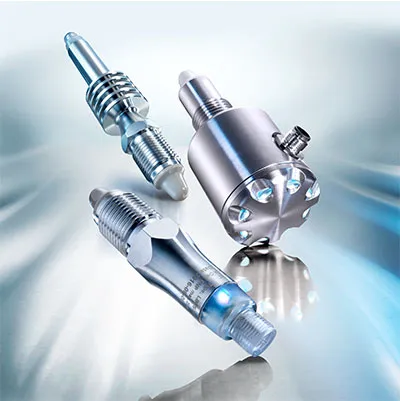

rba-brochure-process-level-switch

Product Highlight

  • Save detection of liquids
  • Bulk-solids and powders short immersion length excellent cleanability
  • Ability for differentiation between foam and liquid
  • Not sensitive to adherent or sticky media
  • Status signalling by bright, blue LED Compact stainless steel housing
  • Sealed up to IP69K Measures media with DC-values >1.5 (Dielectric Constant)

Application

  • Solid & Liquid level detection
  • Foam detection
  • Media separation
  • Differentiation between two very similar media

Technical Specifications

Measurement Pin Point Detection
Repeatability +- 1 mm
Operating temperature -40 to 85 C
MOC SS316 & PEEK
Signal Output PNP/NPN
Power Supply 12..30 Vdc
response time 0.1 sec
Ele. Connection M12 4 pin connector
