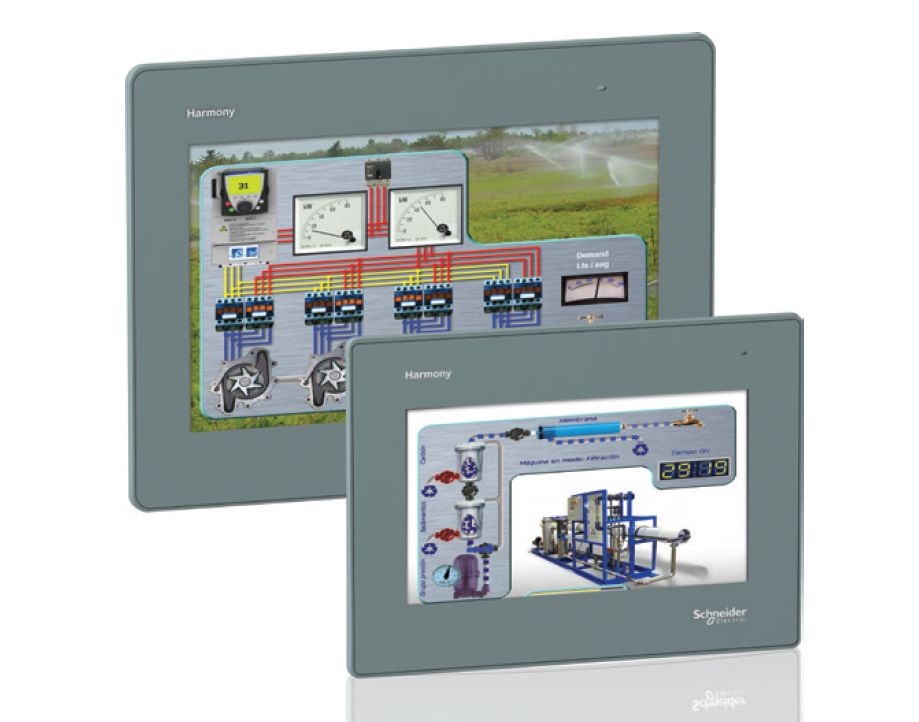

GXU Series

Introduction

The Easy Harmony GXU range of touch screen panels is designed to provide just the right level of performance for communication with simple machines: non-critical functions have been reduced so as to offer easy-to-use products with the correct level of quality at an affordable cost.

Harmony GXU

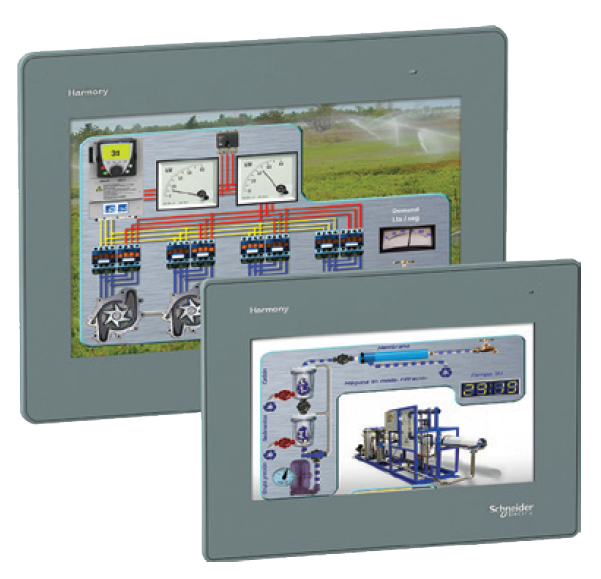

Presentation and applications

The range of Easy Harmony GXU touch screen panels has been designed for manufacturers of simple machines and is dedicated to the following fields and types of machine:

  • Textile
  • blowing and carding machines
  • winding and twisting machines
  • dyeing and finishing machines
  • Packaging
  • vertical and horizontal packing
  • filling machine
  • labelling machine
  • HVAC & pumping
  • air compressor
  • water pumping
  • Miscellaneous activity sectors
  • machine tools (grinder, saw, etc.)
  • plastic and rubber (extruding machine, etc.)
  • printing (stamping and folding machines, etc.)
  • construction machines
Harmony GXU

Operation

Easy Harmony GXU touch screen panels are designed to fit for the essential needs of information and communication technologies, which, depending on the model, include:

  • Essential level of communication (Serial multilink, USB downloading port)
  • High level of communication (Embedded Ethernet, multilink) (1)
  • External data storage (on a USB memory stick) for storing production data and backing up applications (1)
  • Management of peripheral equipment: printers, barcode readers, etc. (1) These panels offer an excellent level of technical performance and are designed for use mainly by OEM customers.
Harmony GXU

Configuration

Easy Harmony GXU touch screen panels are configured using Vijeo Designer. Basic software in Windows XP Professional, Windows 7 (Service Pack 3) and Windows 8.1 (32-bit and 64-bit) environments. This simplified configuration software boasts an intuitive user interface with many configurable windows, enabling projects to be developed quickly and easily.

Functions

Easy Harmony GXU touch screen panels offer the following functions:

  • Display of animated mimics with 8 types of animation (pressing the touch panel, color changes, filling, movement, rotation, size, visibility and value display)
  • Control, modification of numeric and alphanumeric values
  • Display of date and time
  • Real-time curves and trend curves with log
  • Alarm display, alarm log, and management of alarm groups
  • Multi-window management
  • Page calls initiated by the operator
  • Multilingual application management (10 languages simultaneously)
  • Recipe management
  • Data processing via Java Script
  • Application and logs stored on external application memory card in USB stick format
  • Management of printer and barcode reader
